0.6/1 kV – Armoured Single core cables (Underground Cable) – Cu/XLPE/PVC/DATA/PVC

Hotline

Mô tả

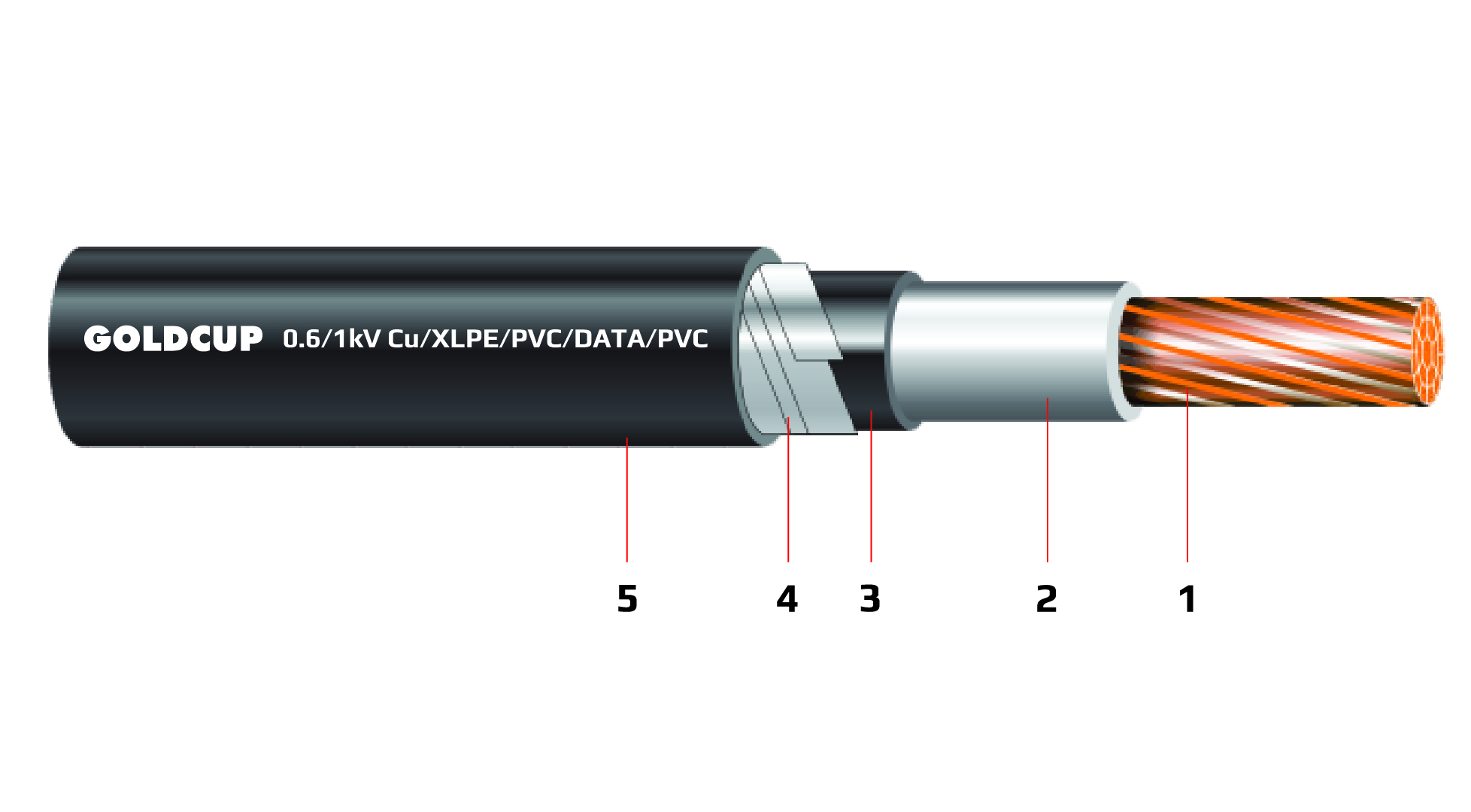

Caption

1/ Conductor:

Copper

2/ Insulation:

XLPE

3/ Inner sheath:

PVC

4/ Metal Screen:

Double Aluminium Tape /DATA

5/ Outer sheath:

PVC

Specifications

Type:

Power Cables

Technical Specification:

Cu/XLPE/PVC/DATA/PVC

Number of Cores:

Core Type:

Solid

Voltage (V):

0.6/1 kV

Cross-section (mm2):

70; 95; 120; 150; 185; 240; 300; 400; 500; 630

Applicable Standard:

TCVN 5935-1 (IEC 60502-1)

01.

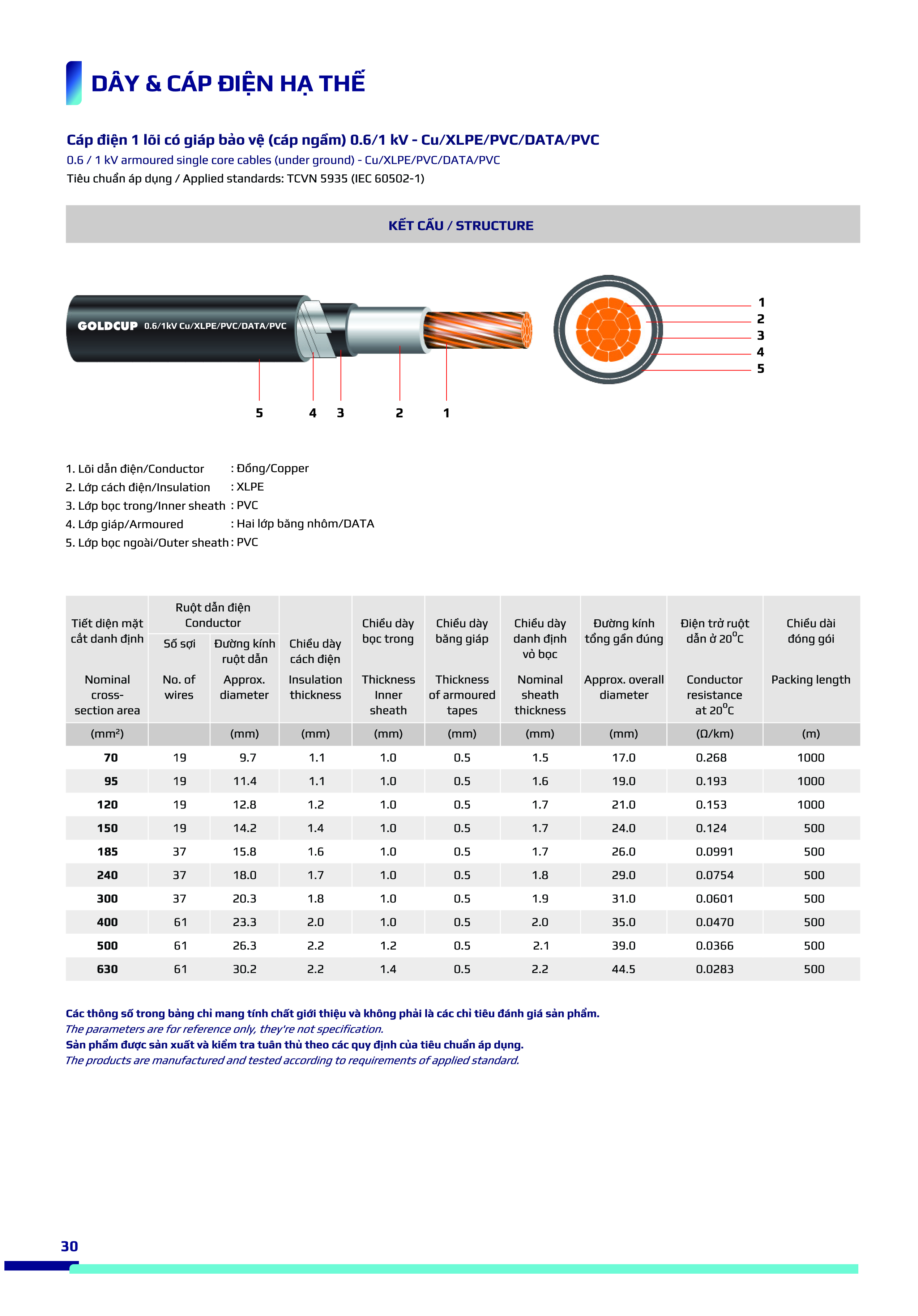

View detailed technical specifications (image)

02.

View Product Catalogue (PDF)

Thông tin bổ sung

Armor Protection	Aluminium Tape Armor (DATA / ATA)
Voltage (V)	0.6/1 kV
Insulation Layer	PVC, XLPE
Number of Cores	1 core
Cross-section	120, 185, 240, 300, 400, 500, 630, 70, 95
Type	Power Cables, With Metal Armor (Underground Cable)
Conductor Material	Copper (Cu), Solid Core
