0.6/1 kV – Unarmoured Single core fire resistance cables – Cu/Mica/XLPE/FR-PVC

Hotline

Mô tả

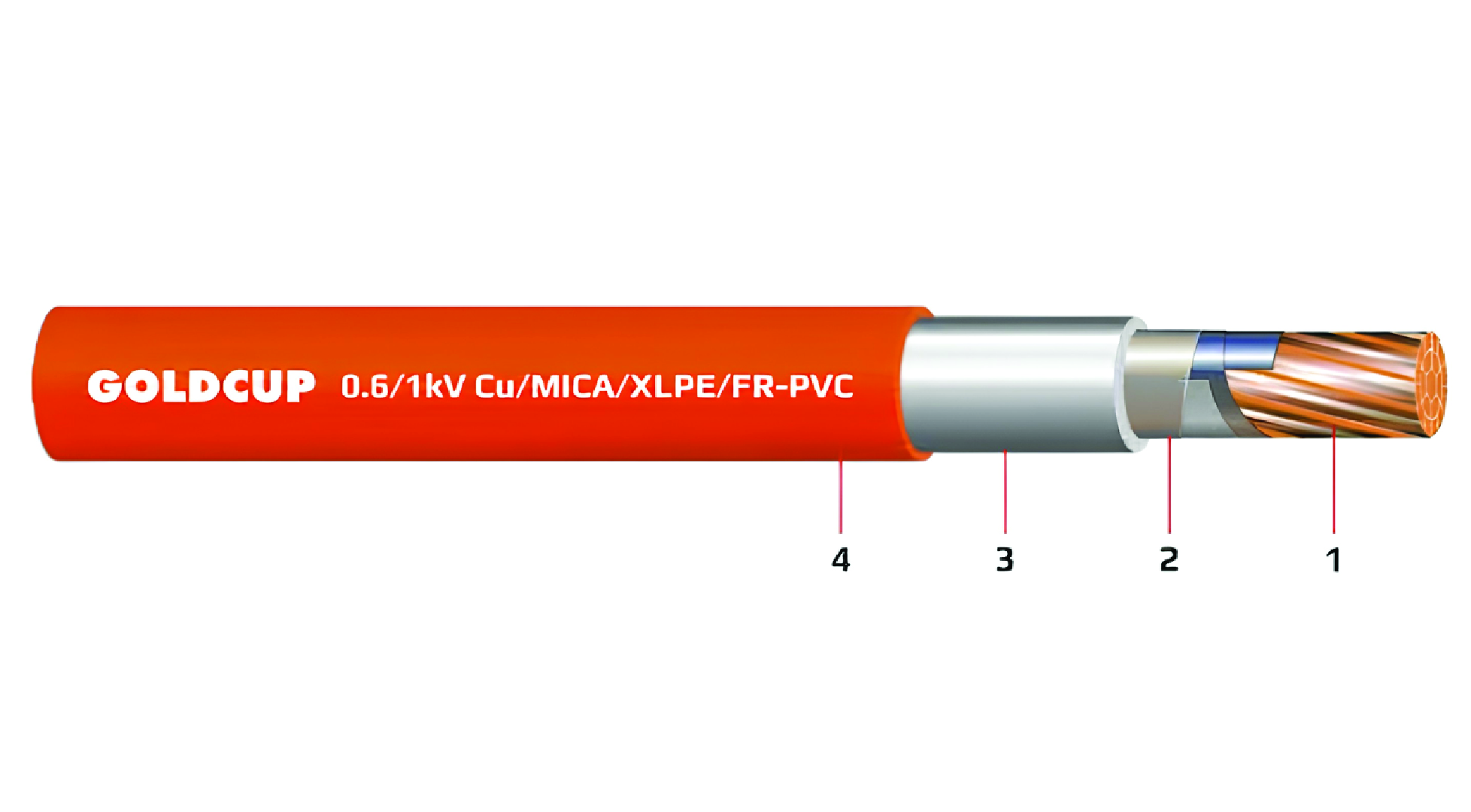

Caption

1/ Conductor:

Copper

2/ Fire proof:

Mica Tape

3/ Insulation:

XLPE

4/ Outer Sheath:

FR-PVC or LSHF

Specifications

Type:

Fire-Resistant Wires & Cables

Voltage (V):

0.6/1 kV

Technical Specification:

Cu/Mica/XLPE/FR-PVC

Number of Cores:

Core Type:

Solid

Cross-section (mm2):

1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300; 400; 500

Applicable Standard:

IEC 60502-1, IEC 60331-21

01.

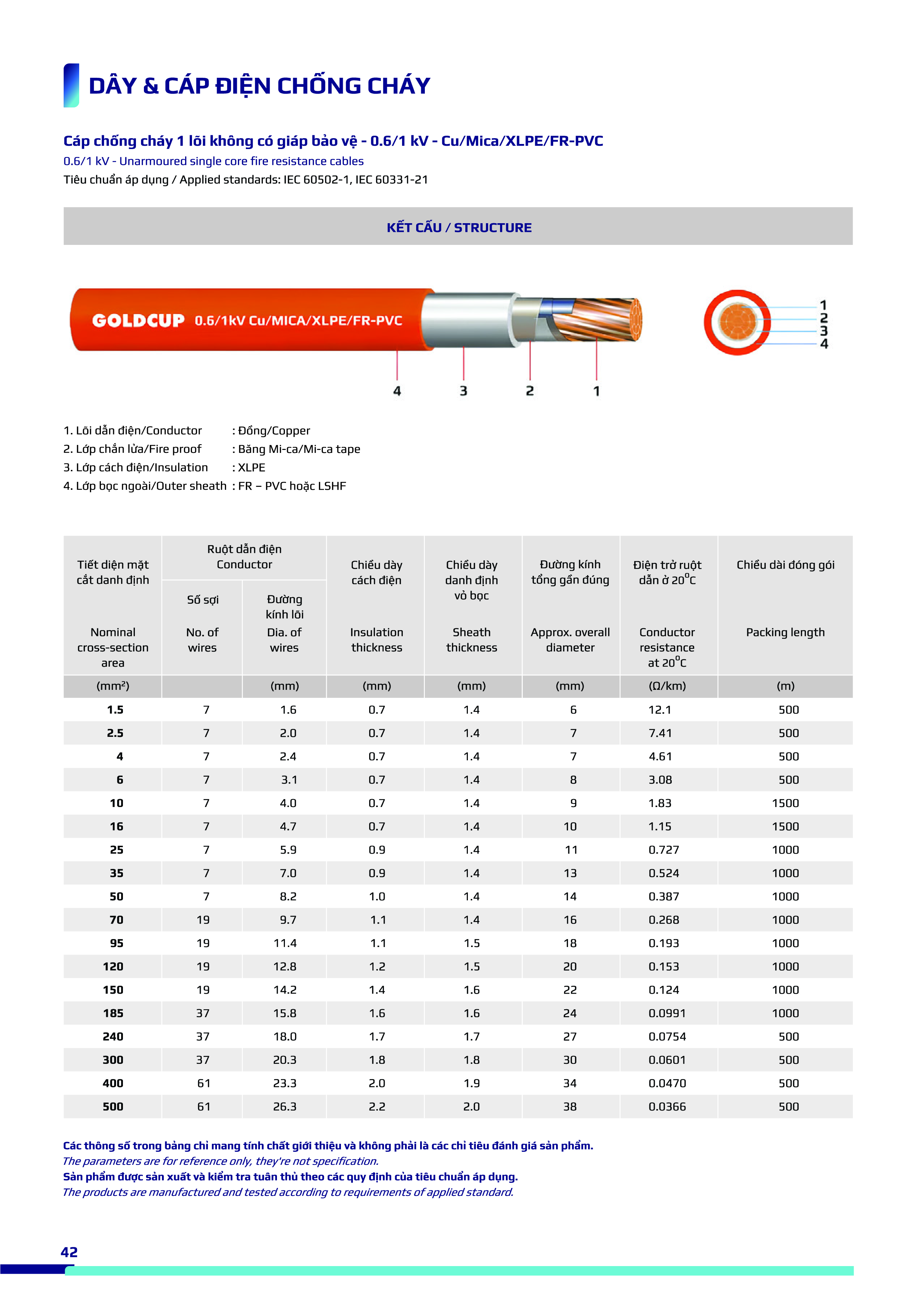

View detailed technical specifications (image)

02.

View Product Catalogue (PDF)

Thông tin bổ sung

Armor Protection	No Armor Protection
Voltage (V)	0.6/1 kV
Insulation Layer	LSHF, PVC – FR, XLPE
Number of Cores	1 core
Conductor Material	Copper (Cu), Solid Core
Cross-section	1.5, 10, 120, 150, 16, 185, 2.5, 240, 25, 300, 35, 4.0, 400, 50, 500, 6.0, 70, 95
Type	Mica Tape, Fire-Resistant
