0.6/1 kV – 2 cores service entrance cables (Muyle Cable) – Cu/XLPE/PVC/ATA/PVC

Mô tả

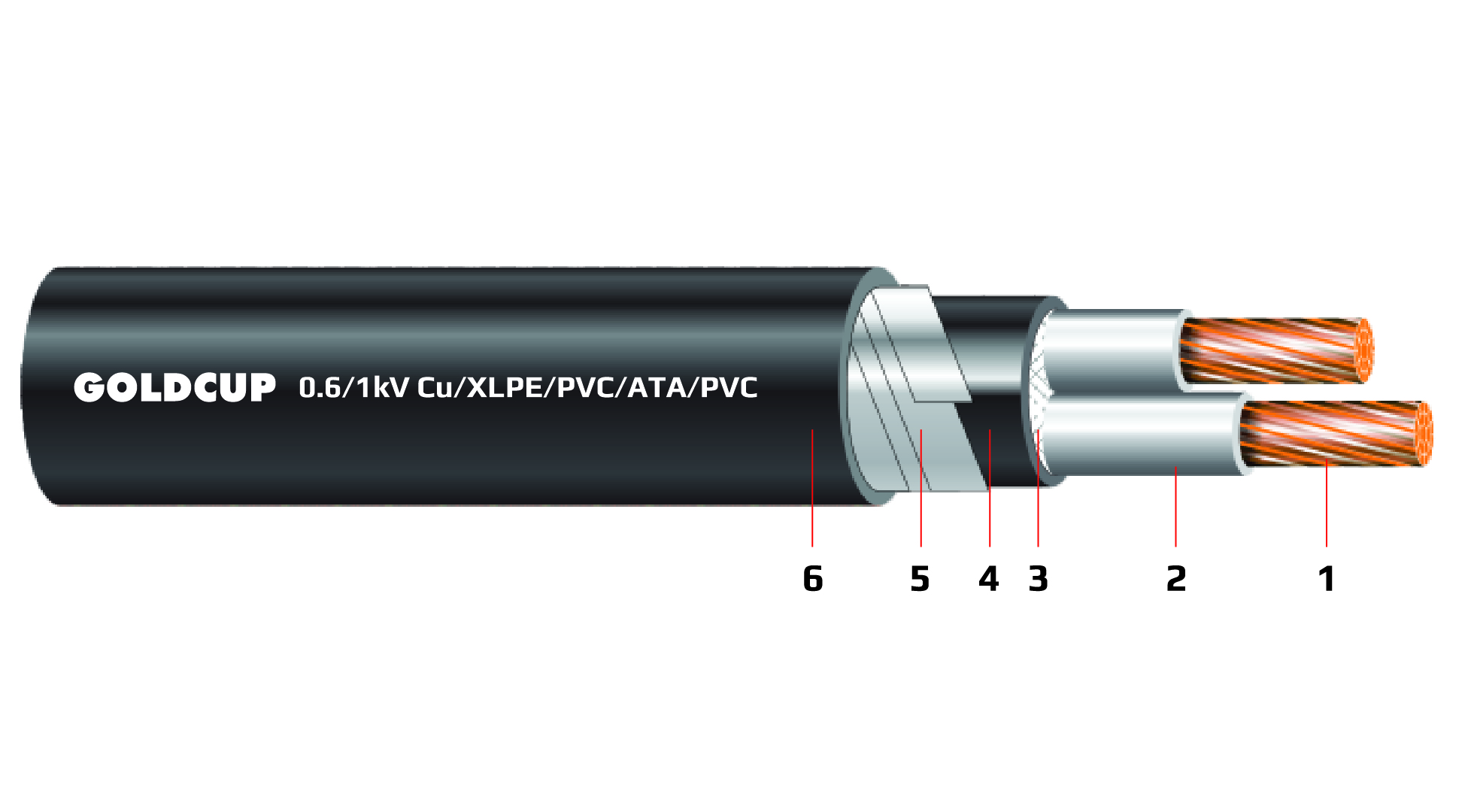

Caption

1/ Conductor:

Copper

2/ Insulation:

XLPE

3/ Filler:

4/ Inner sheath:

PVC

5/ Metal Screen:

Single Aluminium Tape/ATA

6/ Outer sheath:

PVC

Specifications

Type:

Power Cables

Technical Specification:

Cu/XLPE/PVC/ATA/PVC

Number of Cores:

Core Type:

Solid

Voltage (V):

0.6/1 kV

Cross-section (mm2):

1.5; 2.5; 4; 6; 10; 16; 25; 35; 50; 70; 95; 120

Applicable Standard:

TCVN 5935-1 (IEC 60502-1)

01.

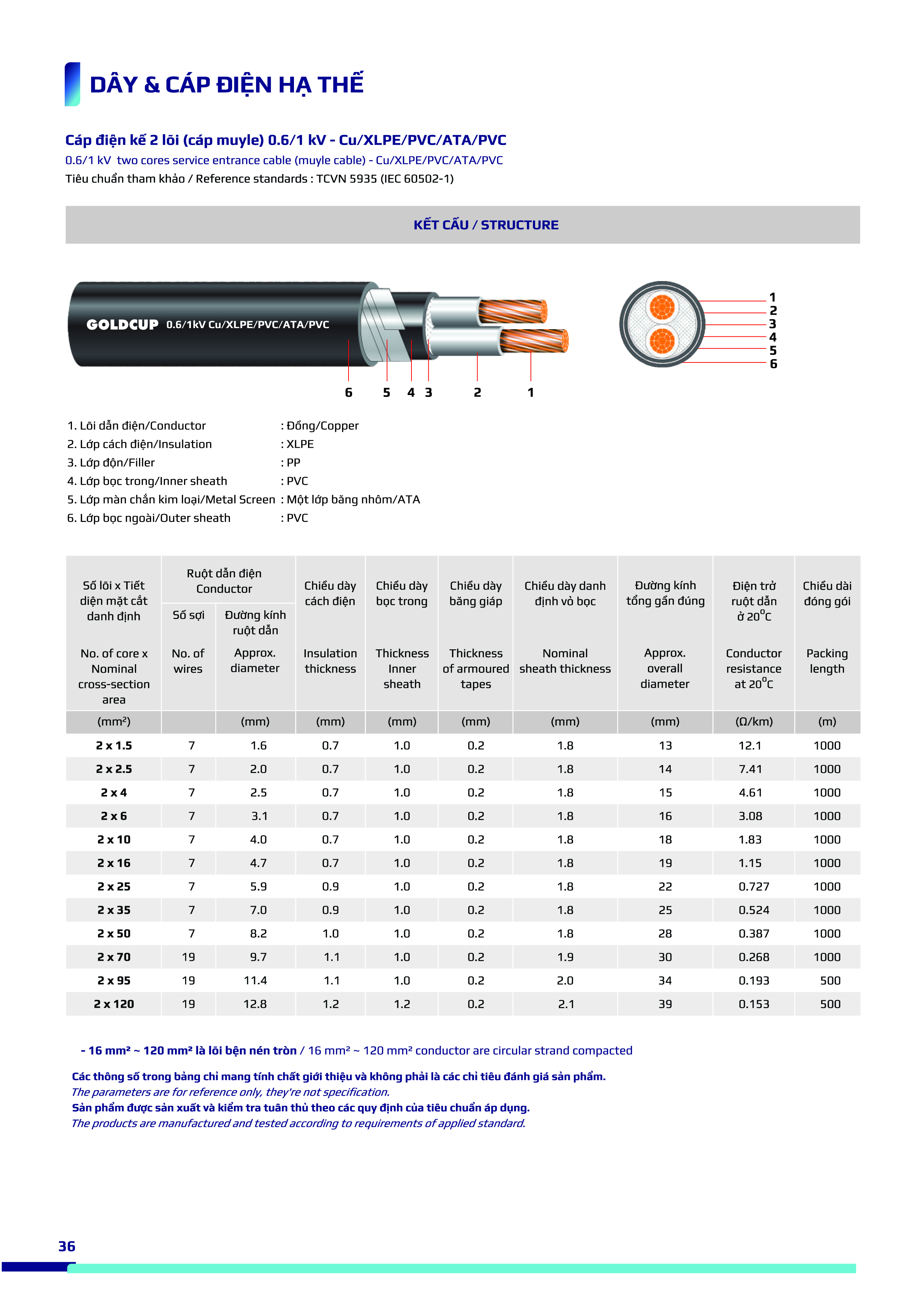

View detailed technical specifications (image)

02.

View Product Catalogue (PDF)

Thông tin bổ sung

Armor Protection	Aluminium Tape Armor (DATA / ATA)
Voltage (V)	0.6/1 kV
Cross-section	1.5, 10, 120, 16, 2.5, 25, 35, 4.0, 50, 6.0, 70, 95
Insulation Layer	PP, PVC, XLPE
Number of Cores	2 cores
Type	Power Cables, Aluminium Metal Shield (Coupling Cable)
Conductor Material	Copper (Cu), Solid Core
